DATASHEET

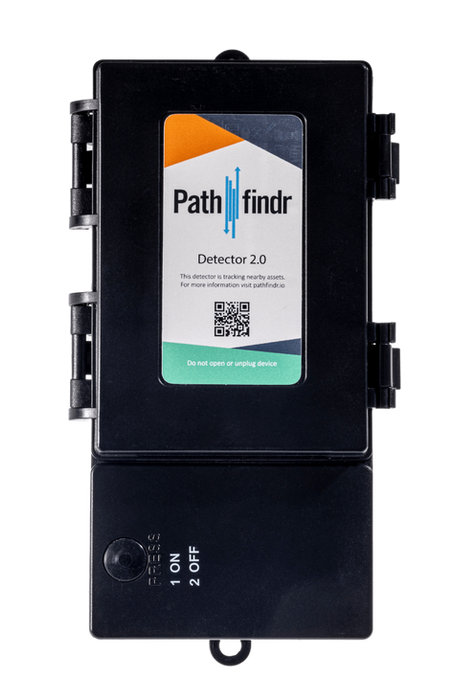

Detector


Detectors are central to the Pathfindr ecosystem. They scan for nearby Bluetooth or Ultra Wide Band tags and send this data to a local Gateway via LoRaWAN. The Gateway then uploads the data to the cloud via cellular, making it instantly accessible in our online portal and mobile app.

Certifications

  • ROHS compliant

  • IP65 enclosure

  • All components FCC certified

Connectivity

  • UWB (6.5GHz/8GHz)

  • -96dBm Bluetooth sensitivity (BLE)

  • < 0.2Watt operation

  • Custom 2.4GHz mesh network with Gateways & other Detectors

  • Detects nearby Bluetooth beacons

Additional Details



  • 57Ah Li-SOCl2 battery

  • At least 1 year battery life in full operation



Enclosure

  • Outdoor compatible enclosure

  • Rugged form factor

  • FOD aware design

Lifespan

  • Battery powered (1 year lifespan)

  • Plug-in option available

  • User servicable

  • Deployable globally

  • Self-managed configuration

  • Easy-to-use web portal

  • Companion mobile app

  • OTA firmware updates

Data

  • BLE

  • UWB

  • LoRaWAN

Activity

  • Monitor up to 2000 Tags per Detector

  • Indoor / on-site asset location monitoring

  • Asset motion & environmental monitoring

  • Detects nearby Bluetooth & UWB Tags

  • Temperature, humidity, and atmospheric pressure sampling
